To meet the ever-changing needs of the food industry for convenience food packaging, we have introduced a variety of prefabricated spouted pouch filling and capping models.

Fully automatic spray bag liquid filling and capping machine is suitable for liquid or semi-liquid nozzle bag filling and capping. It can be used to package jelly, soy milk, yogurt, mineral water, juice, ice cream, edible oil, condiment, detergent, washing powder, etc. The complete following process of Romiter stand-up bag liquid filling and capping machine includes automatic bagging, vacuuming, fixed position filling, nitrogen flushing, cleaning nozzle, capping and inserting, capping (applying magnetic force to adjust torque, quite stable), The material is discharged, and the filling and capping of the entire nozzle bag can be completed automatically.

This nozzle bag filling and capping packaging machine can be connected with CIP cleaning system, PLC control and touch screen system, air purification system, safety switch, glass cover. All these features can be added or removed according to the customer’s requirements.

The fully automatic nozzle type liquid filling and capping machine is suitable for liquid or semi-liquid nozzle bag filling and capping. It can be used in the packaging of jelly, soy milk, yogurt, mineral water, fruit juice, ice cream, edible oil, condiments, detergent, washing powder, etc. The complete process of Orisun self-supporting bag liquid filling and capping machine includes automatic bagging, vacuuming, point charging, nitrogen filling, mouth cleaning, capping, capping (adjusting the torque with magnetic force, very stable), capping, It realizes the automatic completion of filling and capping of the whole nozzle bag.

This nozzle bag filling and capping packaging machine can be connected with CIP cleaning system, PLC control and touch screen system, air purification system, safety switch, glass cover. All these features can be added or removed according to the customer’s requirements. The working process of the automatic water spray bag feeding filling and capping machine Automatic bag feeding, fixed position filling, cleaning the water spray port, rowing the bottle caps, capping the bottle caps, capping and discharging.

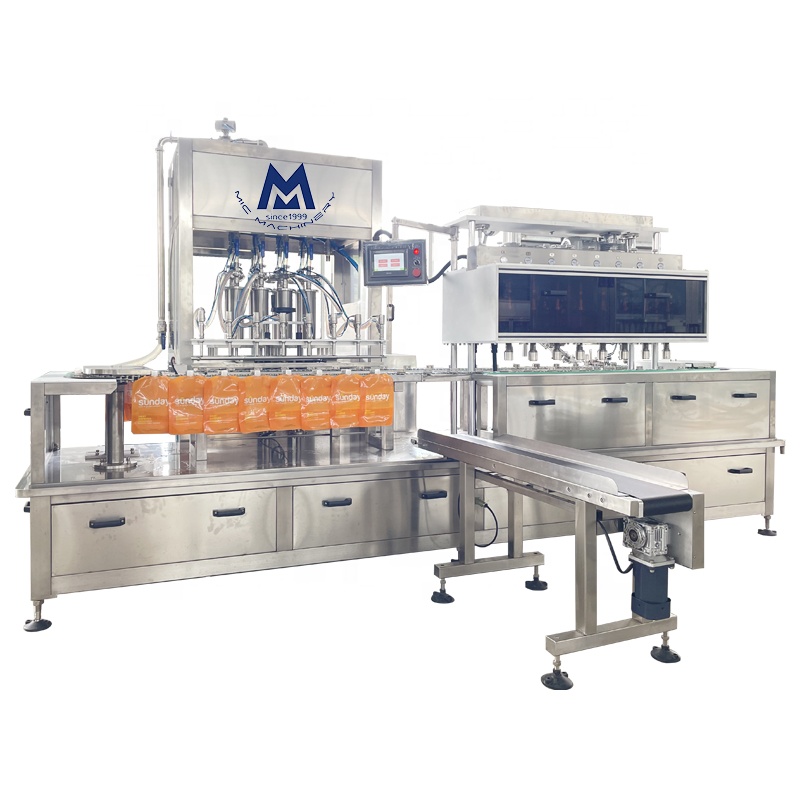

This machine is mainly used for plastic bag packaging suction nozzle filling and capping integrated machine, suitable for filling and capping of liquid and viscous materials. PLC programmable control, with touch screen man-machine interface system, automatic filling, automatic capping. Servo motor drive, double ball screw drive, control the movement of the piston rod, ensure filling stability, higher filling accuracy, integrate light, machine, electricity and gas. It is an all-in-one machine that is easy to operate. Stable and reliable operation, high production efficiency and strong adaptability.

Filling spout/filling head
A leak-proof filling head is specially designed, the height of the filling head can be adjusted by adjusting the handle, and the filling volume can be adjusted according to customer requirements. No bag no filling.

Capping Nozzles/Capping Heads
Adjustable capping machine, suitable for a variety of caps with different diameters. The capping speed can be matched with the filling machine.

Piston cylinder
The piston moves up and down in the cylinder, which is converted into rotary motion by the piston connecting rod and the crankshaft. Suitable for high viscosity liquids.
According to the needs of customers, we can make piston cylinders with different volumes.

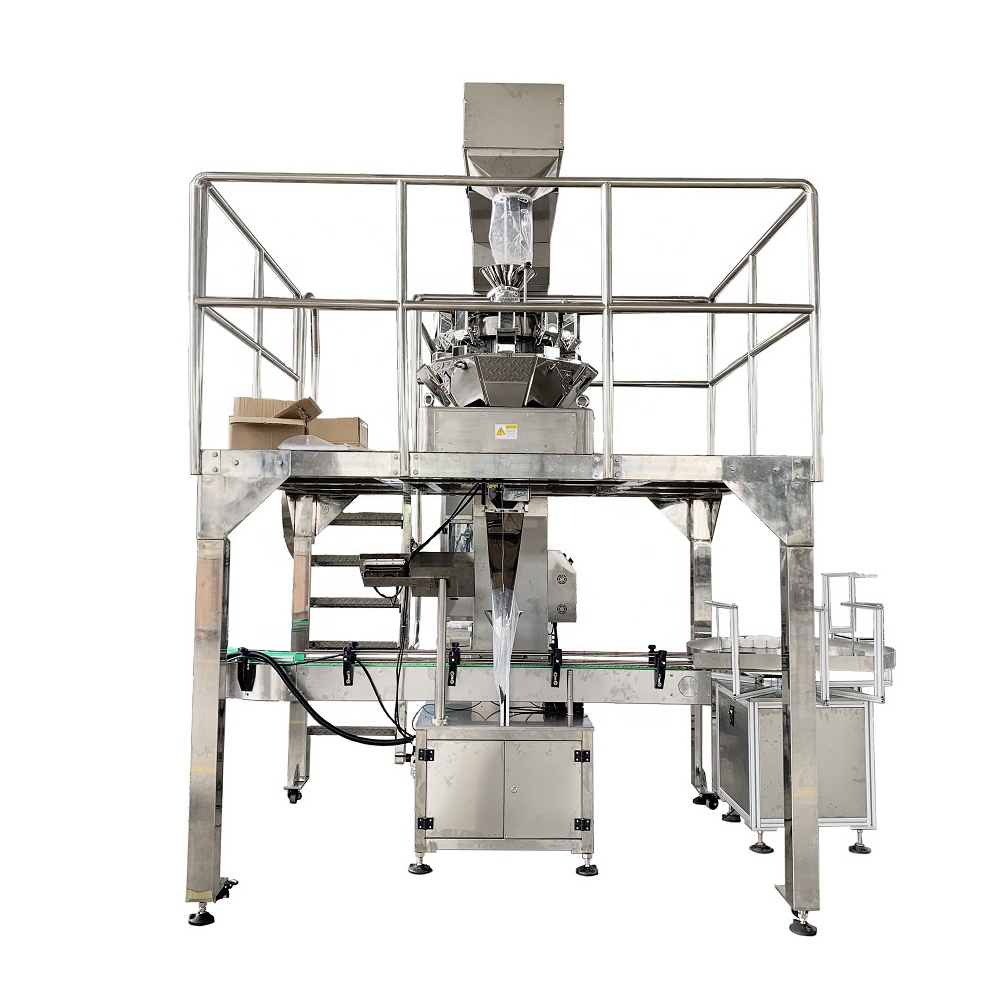

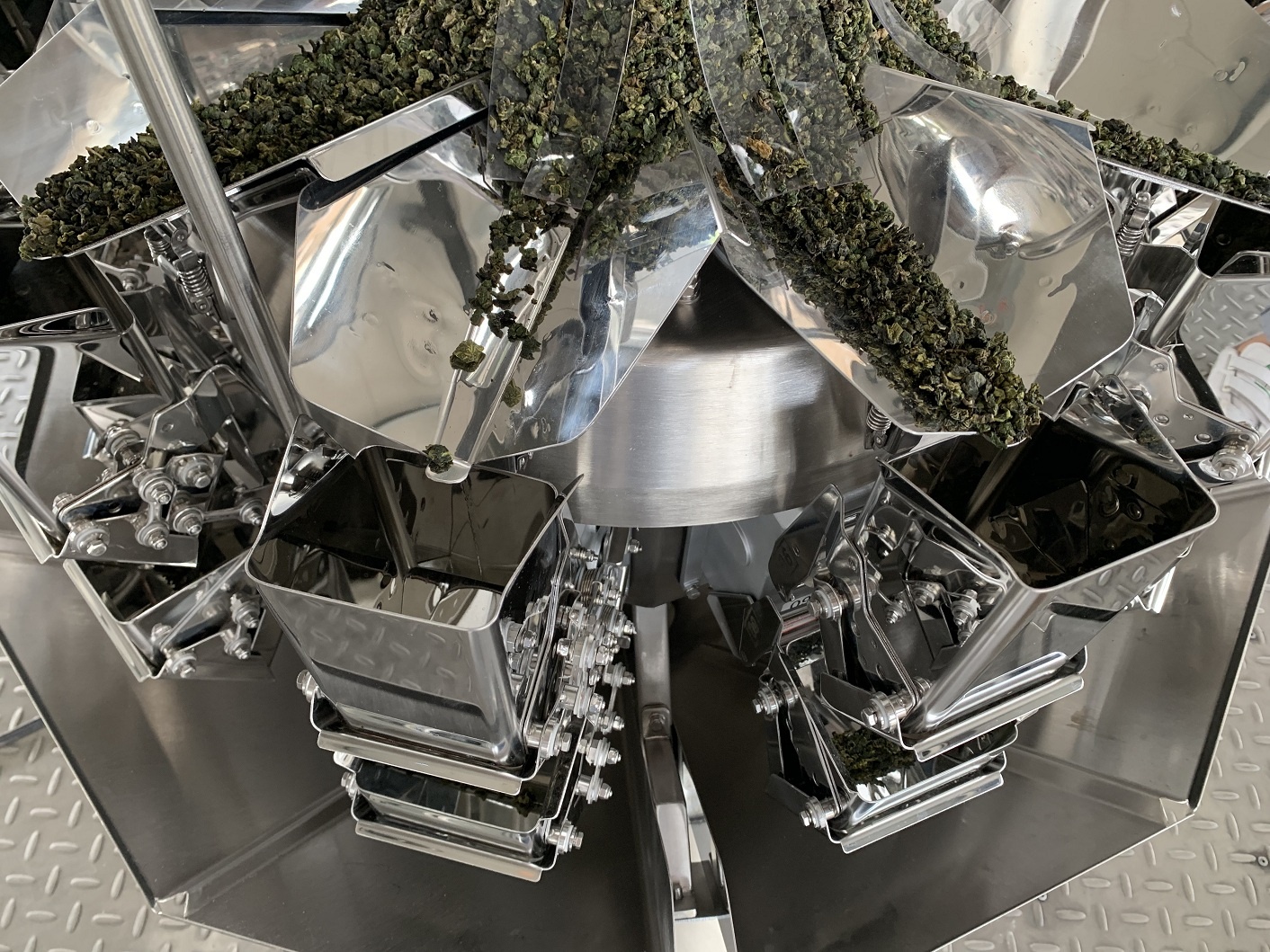

1. The vibration amplitude of the vibrator can be automatically modified, and the weighing is more efficient.
2. Multi-drop and continuous drop methods can be selected to prevent the extruded material from clogging the hopper.
3. Developed high-precision digital load cell and AD module.
4. Multi-language operating systems can be selected according to customer requirements.
5. The material collection system has the functions of rejecting unqualified products, two-way unloading, counting, and restoring factory settings.

Bottle height	40-300mm
Bottle diameter	30-100 mm
Filling volume	Normal 15g-2kg (Can be customized)
Packing speed	10-50bottle per minute (according to the size of bottle mouth and filling volume).
Power	1.0kw
Voltage	220V/380V 50/60Hz, (can be customized)
Weight	400kg
Diamension	(L * w * h) 2000 * 700 * 1500mm.

Solutions for bags with spouts, lids or other accessories Spouted bag filling systems provide solutions for filling and sealing prefabricated bags with spouts, lids and other accessories. Rotary and inline bag systems provide solutions for low volume bag filling and high productivity, high volume bag filling applications.

We offer three filling, sealing and capping solutions:

Seal the spout in the bag, fill through the spout, and close the lid
Fill through the center spout of the pouch and close the lid
Corner pouch: Fill and seal through the top opening of the pouch

INLINE

For high productivity, high volume bagging
Capacity: Up to 500 bags per minute.
*Capacity depends on application

ROTARY

Low output solution and Pilot Lab solution in rotated format
Capacity: Up to 100 bags per minute.

Integrated Downstream Solutions

Multiple options available for pick and place, unload to cook and case solutions

Application

• Baby food, beverages, purees, sauces, dairy and other products
• Unlimited Product Filling Applications
• Hot fill or retort products
• liquid with or without small particles

Shanghai Joygoal Food Machinery Co., Ltd. is a company devoted to the field of food packaging machinery, offers a semiautomatic & full automatic solution for filling pre-spouted pouches. In addition, Joygoal filling machines provide reliable, efficient and safe pouch packaging machinery solutions. The machine can hold fill volumes from 250 ml to 1 liter (optional), the bag style is upright with pre-applied top or corner nozzles (with bracket slots), and the output is (5-6 ppm) based on 250 ml volume .
